1080P 120FPS WDR Night Vision Camera Module SONY IMX290 Sensor
Full HD 1080P 120FPS WDR Star Light Night Vision USB Camera Module With IMX290 SONY Sensor

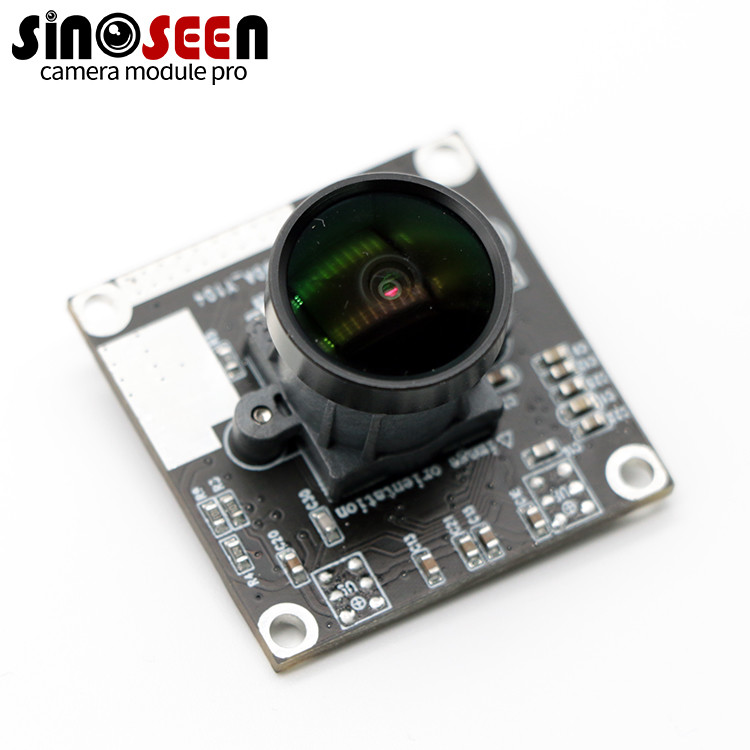

1080P USB camera module
This is a full HD 1080P USB camera module with sensor IMX290 from SONY.The IMX290 is a diagonal 6.46 mm (Type 1/2.8) CMOS active pixel type solid-state image sensor with a square pixel array and 2.13 M effective pixels. This chip operates with analog 2.9 V, digital 1.2 V, and interface 1.8 V triple power supply, and has low power consumption. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B primary color mosaic filters. This chip features an electronic shutter with variable charge-integration time.
This is a low-illumination starlight-level USB camera module, and also has WDR function, can shoot very good picture quality in a low-light environment.
(Applications: Surveillance cameras, FA cameras, Industrial cameras)
Specification
| Model No | SNS-2MP-IMX290-V1.0 |
| Sensor | 1/2.8’’ SONY IMX290 CMOS |
| Pixel | 2 Mega Pixel |
| Most effective pixels | 1920(H) x 1080(V) |
| Pixel Size | 2.9µm x 2.9µm |
| Image area | 1937(H) x 1097(V) |
| Compression format | MJPEG / YUV2/H.264 |
| Resolution & Frame rate | 1920 x1080 @ 60fps 1280x960 @60fps 1280x720 @ 60fps 800x600 @ 60fps 640x480 @ 60 fps 320x240 @ 60fps |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus/Manually adjustable |
| S/N ratio | 52dB |
| Dynamic range | 72dB |
| Sensitivity | 7757 mV / lux-sec |
| Interface type | USB2.0 and SPI |
| Adjustable parameter | Brightness |
| Lens | Optical length: 18.6mm |
| | F/NO: 2.4 |
| | FOV: D=120° |
| | Thread Size: M12*P0.5 |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Power consumption | DC 5V, 260mW |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | NOT Support |
| Auto White Balance (AEB) | NOT Support |
| Auto Gain Control (AGC) | NOT Support |
| Dimension | 38mm x 38mm |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
| Support OS | WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
